20CrMo Carbon steel pipes

Hot rolled carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, geological steel pipe and other steel pipe, etc.

Classification ：

Carbon steel round pipe

E-mail

PRODUCT DETAILS

Keyword: Steel Plate

Description

Carbon steel pipes are divided into hot rolled and cold rolled (pulled) steel pipes.

Cold rolled (dialed) carbon steel pipe is divided into ordinary steel pipe, low and medium pressure boiler steel pipe, high pressure boiler steel pipe, alloy steel pipe, stainless steel pipe, petroleum cracking pipe, other steel pipe, but also includes carbon thin-walled steel pipe, alloy thin-walled steel pipe

Carbon Steel Seamless Pipes – it contains more carbon and iron in its composition. Depending on the grade, trace amounts of silicon, manganese, and copper are permitted in varying quantities. Therefore, the Carbon Steel Seamless Pipe material is stronger and is extremely resistant to stress. In heavy-duty facilities, these features make the pipes applicable.

Carbon Steel Welded Pipes – are used in high-pressure conditions. In a range of industries, such as the transport of water and waste, the oil and gas industries, high-pressure applications, and chemical manufacturing, carbon steel pipes are commonly used.

Carbon Steel ERW Pipes – have various features like Lightweight, Corrosion resistance, structured appropriately, Precision engineered, intricate detailing, Economical, and more. These ERW pipes are used in Ship Building, Automobile, Boilers & Pressure Vessels, Railways, Oil & Petro Chemicals, Coal & Mining, Transmission Towers, and General & Heavy Engineering.

Carbon Steel LSAW Pipes – has some fine features such as easy installation, seamless finish, Rustproof, and more. As these LSAW pipes are expensive, they are not widely used in lower value non-energy applications such as water pipelines.

Specification&Standard

NOMINAL PIPE SIZE		OD (mm)	NOMINAL WALL THICKNESS
DN	NB(inch)	ASME	SCH10	SCH20	SCH30	STD	SCH40	SCH60	XS	SCH80	SCH100	SCH120	SCH140	SCH160	XXS
15	1/2"	21.3	2.11		2.41	2.77	2.77		3.73	3.73				4.78	7.47
20	3/4"	26.7	2.11		2.41	2.87	2.87		3.91	3.91				5.56	7.82
25	1"	33.4	2.77		2.9	3.38	3.38		4.55	4.55				6.35	9.09
32	1.1/4"	42.2	2.77		2.97	3.56	3.56		4.85	4.85				6.35	9.7
40	1.1/2"	48.3	2.77		3.18	3.68	3.68		5.08	5.08				7.14	10.15
50	2"	60.3	2.77		3.18	3.91	3.91		5.54	5.54				8.74	11.07
65	2.1/2"	73	3.05		4.78	5.16	5.16		7.01	7.01				9.53	14.02
80	3"	88.9	3.05		4.78	5.49	5.49		7.62	7.62				11.13	15.25
90	3.1/2"	101.6	3.05		4.78	5.74	5.74		8.08	8.08
100	4"	114.3	3.05		4.78	6.02	6.02		8.56	8.56		11.13		13.49	17.12
125	5"	141.3	3.4			6.55	6.55		9.53	9.53		12.7		15.88	19.05
150	6"	168.3	3.4			7.11	7.11		10.97	10.97		14.27		18.26	21.95
200	8"	219.1	3.76	6.35	7.04	8.18	8.18	10.31	12.7	12.7	15.09	18.26	20.62	23.01	22.23
250	10"	273	4.19	6.35	7.8	9.27	9.27	12.7	12.7	15.09	18.26	21.44	25.4	28.58	25.4
300	12"	323.8	4.57	6.35	8.38	9.53	10.31	14.27	12.7	17.48	21.44	25.4	28.58	33.32	25.4
350	14"	355.6	6.35	7.92	9.53	9.53	11.13	15.09	12.7	19.05	23.83	27.79	31.75	35.71
400	16"	406.4	6.35	7.92	9.53	9.53	12.7	16.66	12.7	21.44	26.19	30.96	36.53	40.19
450	18"	457.2	6.35	7.92	11.13	9.53	14.27	19.05	12.7	23.83	39.36	34.93	39.67	45.24
500	20"	508	6.35	9.53	12.7	9.53	15.09	20.62	12.7	26.19	32.54	38.1	44.45	50.01
550	22"	558.8	6.35	9.53	12.7	9.53		22.23	12.7	28.58	34.93	41.28	47.63	53.98
600	24"	609.6	6.35	9.53	14.27	9.53	17.48	24.61	12.7	30.96	38.89	46.02	52.37	59.54
650	26"	660.4	7.92	12.7		9.53			12.7
700	28"	711.2	7.92	12.7	15.88	9.53			12.7
750	30"	762	7.92	12.7	15.88	9.53			12.7
800	32"	812.8	7.92	12.7	15.88	9.53	17.48		12.7
850	34"	863.6	7.92	12.7	15.88	9.53	17.48		12.7
900	36"	914.4	7.92	12.7	15.88	9.53	19.05		12.7

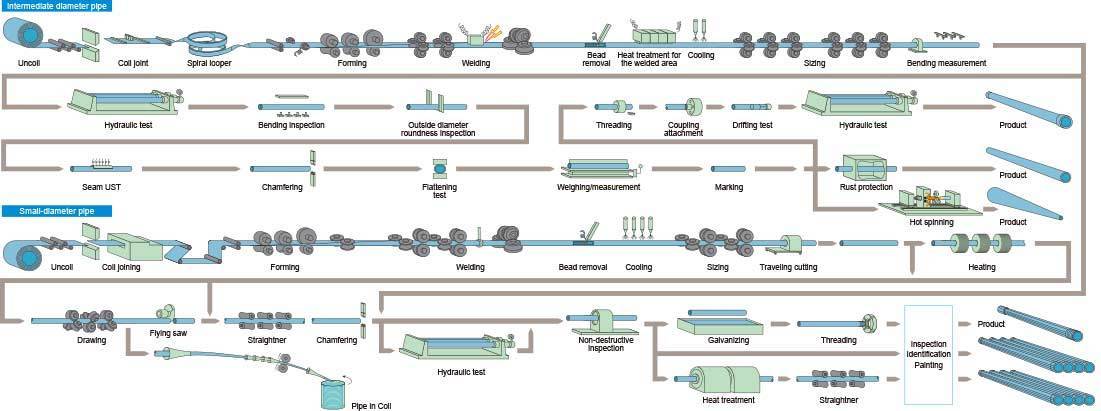

Process

Packing

Bundled package

On bundle of steel tube shall be the same in batch number, steel grade and specification.the rest of tubing less than one bundle should be tied into small bundles.

The weight of each bundle should be less than 50kg.The max weight cannot exceed 80kg of the bundle If there are special requirements.

When the length of the steel tube is greater than or equal to 6m, with at least 8 strapping bands for each bundle, divided into 3 groups and 3-2-3.

When the length of the steel tube is less than 6m, and each bundle is tied at least 5 knots and divided into 3 groups, which are 2-1-2.

When the length of the tube is greater than or equal to 3m, and each bundle is tied with at least 3 bands, divided into 3 groups, 1-1-1 showed below

Wooden box package

The wooden box is suitable for cold rolling or cold drawing seamless steel tube, polished hot rolled stainless steel tube.

When the outer diameter of steel pipe is greater than or equal 10mm, the maximum weight of the container should be 50kg.

When the outer diameter of steel pipe is less than or equal 10mm, the maximum weight of the container should be 30kg.

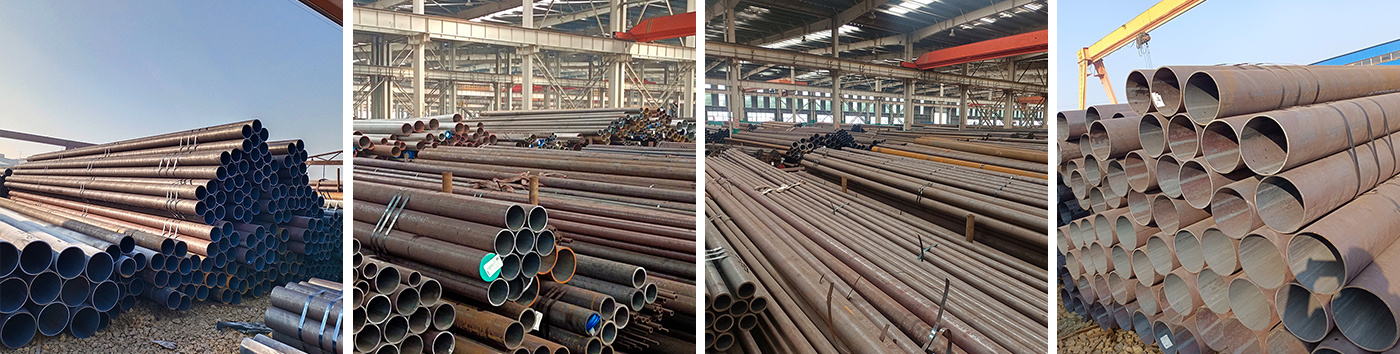

Storage video

Factory appearance and appearance

The company mainly engaged in steel production, sales and other businesses. The main products include all kinds of steel plate, steel pipe, bar, profile and other materials and section steel. At the same time is a number of domestic large steel mill level agents, with a certain price advantage.

Packing and delivery

For many years, the company has been established, adhering to the purpose of "respecting contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "achieve what customers think, think what customers think" business philosophy, to "one sale, small profit, real price, timely delivery" business principle, we manage all kinds of specifications and materials of steel pipe and profile for customers.

Application field

The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.

Customer Visit Feedback

Over the years since its establishment, the company has been adhering to the purpose of "honoring contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "reach customer think, think customer think" business philosophy.

FAQ

Q1:Can you send samples?

A:Of course, we can provide customers with free samples and express shipping service to all over of the world.

Q2:What product information do I need to provide?

A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.

Q3:It's my first time to import steel products, can you help me with it?

A:Sure,we have agent to arrange the shipment, we will do it together with you.

Q4:What about product prices information?

A:Prices various according to periodic price changes of raw materials.

Q5:What ports of shipment are there?

A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.

Q6:What is your terms of payment ?

A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
