S275 JR H BEAM
Equal thickness in the two parallel flanges with no taper on the inside surface.
Classified into narrow, medium, and wide, based on the height and flange width.
PRODUCT DETAILS
Keyword: Steel Plate
Specification
|
Product Name |
Steel h-beam |
|
Material |
Q235/S235JR/S275JR/S355JR/J0/J2,S450J0 |
|
Standard |
GB, JIS,KSD, ASTM, EN,AISI |
|
Length |
500-2000mm or as your requirement |
|
Width |
50-400mm |
|
Web thickness |
50-40mm |
|
Flange thickness |
50-302mm |
|
Color |
Clean, blasting and painting or as required |
|
Technique |
Hot rolled/Cold rolled |
|
Used |
Used for beams, bridges, transmission towers, etc. For engineering construction For steel structure engineering For automotive parts manufacturing |
|
5MOQ |
15tons.We also can accept sample order. |
|
Capacity |
200,000 tons/year |
|
Shipment time |
Within 10-20 workdays after receiving deposit |
Product Paramenters
|
H BEAM TABLE |
|||||
|
SIZE |
Theoretical weight-GB(kg/m) |
Theoretical weight-JIS(kg/m) |
SIZE |
Theoretical weight-GB(kg/m) |
Theoretical weight-JIS(kg/m) |
|
100*50*5*7 |
9.54 |
9.3 |
390*300*10*16 |
107 |
105 |
|
100*100*6*8 |
17.2 |
16.9 |
394*398*11*18 |
147 |
147 |
|
125*60*6*8 |
13.3 |
13.1 |
396*199*7*11 |
56.7 |
56.1 |
|
125*125*6.5*9 |
23.8 |
23.6 |
400*200*8*13 |
66 |
65.4 |
|
150*75*5*7 |
14.3 |
14 |
400*400*13*21 |
172 |
172 |
|
148*100*6*9 |
21.4 |
20.7 |
400*408*21*21 |
197 |
197 |
|
150*150*7*10 |
31.9 |
31.1 |
414*405*18*28 |
233 |
232 |
|
175*90*5*8 |
18.2 |
18 |
428*407*20*35 |
284 |
283 |
|
175*175*7.5*11 |
40.4 |
40.4 |
440*300*11*18 |
124 |
121 |
|
194*150*6*9 |
31.2 |
29.9 |
446*199*8*12 |
66.7 |
65.1 |
|
198*99*4.5*7 |
18.5 |
17.8 |
450*200*9*14 |
76.5 |
74.9 |
|
200*100*5.5*8 |
21.7 |
20.9 |
458*417*30*50 |
415 |
415 |
|
200*200*8*12 |
50.5 |
49.9 |
482*300*11*15 |
115 |
111 |
|
200*204*12*12 |
56.7 |
56.2 |
488*300*11*18 |
129 |
125 |
|
244*175*7*11 |
44.1 |
43.6 |
496*199*9*14 |
79.5 |
77.9 |
|
248*124*5*8 |
25.8 |
25.1 |
498*432*45*70 |
605 |
604 |
|
250*125*6*9 |
29.7 |
29 |
500*200*10*16 |
89.6 |
88.1 |
|
250*250*9*14 |
72.4 |
71.8 |
506*201*11*19 |
103 |
102 |
|
250*255*14*14 |
82.2 |
81.6 |
582*300*12*17 |
137 |
133 |
|
294*200*8*12 |
57.3 |
55.8 |
588*300*12*20 |
151 |
147 |
|
294*302*12*12 |
85 |
83.5 |
594*302*14*23 |
175 |
170 |
|
298*149*5.5*8 |
32.6 |
32 |
596*199*10*15 |
95.1 |
92.4 |
|
300*150*6.5*9 |
37.3 |
36.7 |
600*200*11*17 |
106 |
103 |
|
300*300*10*15 |
94.5 |
93 |
606*201*12*20 |
120 |
118 |
|
300*305*15*15 |
106 |
105 |
692*300*13*20 |
166 |
163 |
|
340*250*9*14 |
79.7 |
78.1 |
700*300*13*24 |
185 |
182 |
|
344*348*10*16 |
115 |
113 |
792*300*14*22 |
191 |
188 |
|
346*174*6*9 |
41.8 |
41.2 |
800*300*14*26 |
210 |
207 |
|
350*175*7*11 |
50 |
49.4 |
890*299*15*23 |
213 |
210 |
|
350*350*12*19 |
137 |
135 |
900*300*16*28 |
243 |
240 |
|
388*402*15*15 |
141 |
140 |
912*302*18*34 |
286 |
283 |

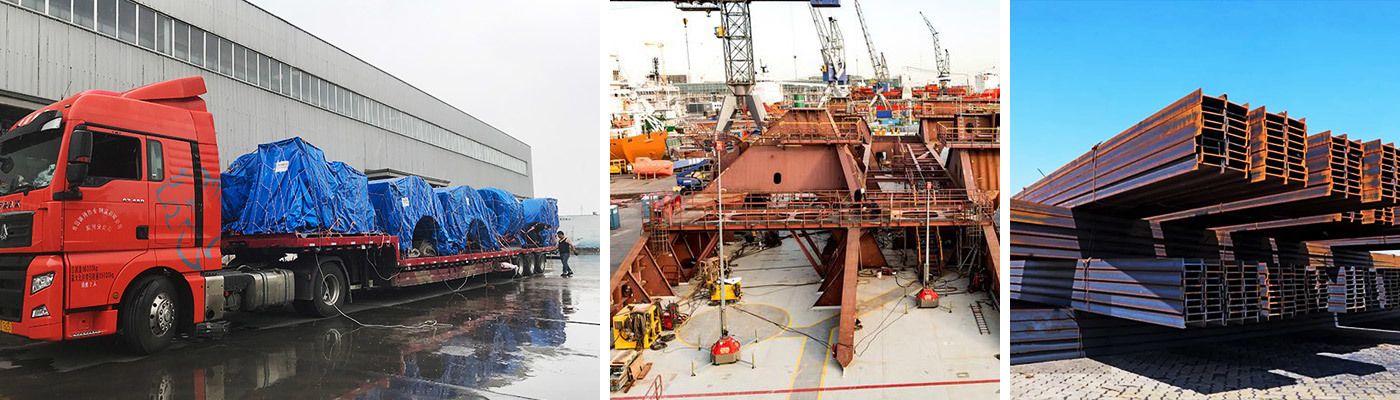

Storage video
Warehouse storage
The company mainly engaged in steel production, sales and other businesses. The main products include all kinds of steel plate, steel pipe, bar, profile and other materials and section steel. At the same time is a number of domestic large steel mill level agents, with a certain price advantage.
Packing and delivery
For many years, the company has been established, adhering to the purpose of "respecting contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "achieve what customers think, think what customers think" business philosophy, to "one sale, small profit, real price, timely delivery" business principle, we manage all kinds of specifications and materials of steel pipe and profile for customers.
Application field
The main supply fields are: aerospace, national defense equipment, military weapons, chemical industry, shipbuilding, nuclear energy, trains, containers, environmental protection, precision machining, auto parts, machinery, electronic products, molds, medical treatment Equipment, construction, decoration, etc.
Customer Visit Feedback
Over the years since its establishment, the company has been adhering to the purpose of "honoring contract, keeping faith, customer first, reputation first, quality first", adhering to the customer demand as the center, to "reach customer think, think customer think" business philosophy.
FAQ
Q1:Can you send samples?
A:Of course, we can provide customers with free samples and express shipping service to all over of the world.
Q2:What product information do I need to provide?
A:Please kindly provide the grade, width, thickness, surface treatment requirement should you have and quantities you need to purchase.
Q3:It's my first time to import steel products, can you help me with it?
A:Sure,we have agent to arrange the shipment, we will do it together with you.
Q4:What about product prices information?
A:Prices various according to periodic price changes of raw materials.
Q5:What ports of shipment are there?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can specify other ports according to your needs.
Q6:What is your terms of payment ?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment or based on BL copy or LC at sight.
